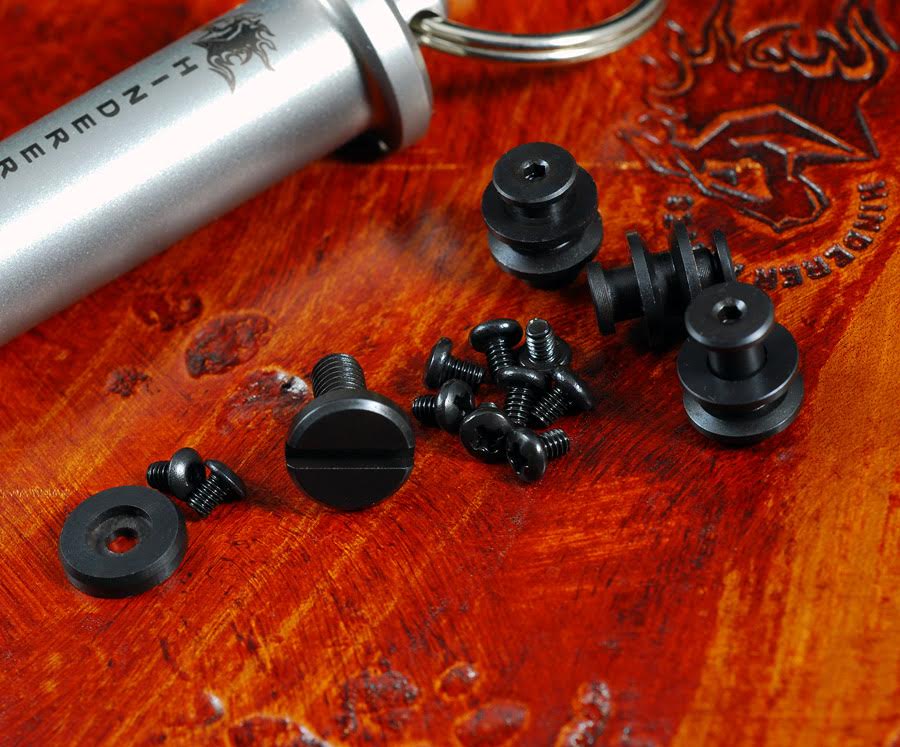

(1) PIVOT SCREW
(1) LOCKBAR STABILIZER
(2) LOCKBAR STABILIZER SCREWS – (BIT SIZE: .050” HEX)
(3) HANDLE NUTS
(3) HANDLE SCREWS – (BIT SIZE: 1/16” HEX)
(8) PHILLIPS CLIP SCREWS – (BIT SIZE: #0 PHILLIPS)
Please use great care when installing the black hardware, if you use the wrong size tools or if a tool slips during installation it will scratch the finish.
The Hinderer Armorer’s Tool has a precise fit screw driver blade to help eliminate any movement inside the slot that can damage the finish. If using a standard screw driver, we suggest putting masking tape on the tip to prevent marring of the finish.
Each hardware kit was thoroughly inspected for finish defects during packing. We cannot be responsible for scratches during installation. If you do scratch the finish it will not be covered under warranty, and the parts cannot be returned for refund or exchange.
*Key notes, use the proper tools and be careful during installation!*
We recommend using WIHA Precision drivers, we use them in the shop with great success.
